GL070E
High quality Good price Kinco GL070E HMI Touch Screen 7 inch
Request A Quote
Features
Display：7″TFT
Resolution：800*480 pixels
CPU: ARM RISC 32Bit 800MHz
Products we have in stock
GL070/GL070E
Product Datasheet
GL070E (569.73KB)7" TFT
154.08(W)×85.92(H)
800×480 px
16.77M true color
70/70/60/70(L/R/U/D)
500:1
LED
450cd/m²
More than 30000 hours
4-wire precision resistance network (surface hardness 4H)
ARM RISC 32Bit 800 MHz
256MB NAND flash + 128MB DDR3 RAM
Built-in RTC
1USB Host
USB Host/Serial port
10/100M adaptable Ethernet interface
None
USB Slave(Micro USB)/U Disk/Ethernet
COM0: RS232/RS485/RS422.COM2: RS232.
DC12V~DC28V,inbuilt isolated power supply
3.6W@DC24V
<3ms
Greater than 50MΩ@ 500V DC
500V AC 1 minute
Engineering plastics

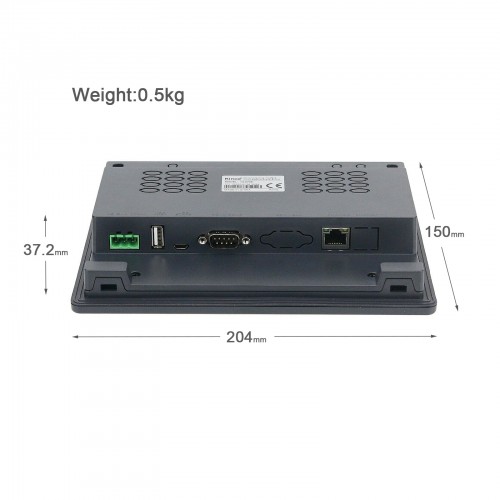

204×150×34 (mm)
192×138 (mm)
0.5Kg
0~50℃
10~90%RH (non-condensing)
-20~60℃
10~90%RH (non-condensing)
10~500Hz, 30m/s², X,Y,Z direction/hour
Natural air cooling
Conforming to IP65 certification (4208-93)
CE: EN61000-6-4:2007+A1:2011，EN61000-6-2:2005
Kinco DTools V4.1 and above version
Notes: GL070E is a replacement model for MT4434TE.
The old version of the project can be opened directly by DTools software and downloaded to the new HMI.
